MARSA Hardware-Kinyea Technologies

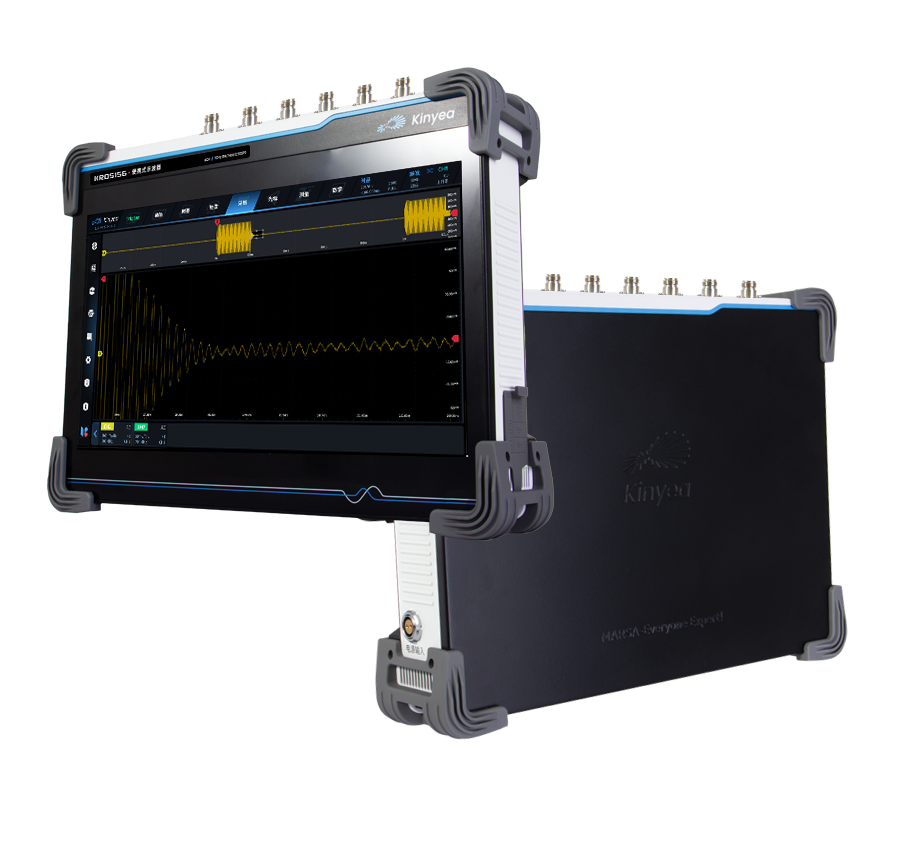

8CH, max. 10GSa/s Sample Rate, 2GHz BW Featuring a 14-inch touchscreen, this instrument has a portable, all-in-one design, it integrates high-speed, high-precision data acquisition and processing at speeds of up to 10 GSa/s with 2GHz bandwidth. A comprehensive suite of API drivers enhances the instrument's suitability for custom development. Furthermore, the pre-installed kyScope software provides convenience for general-purpose testing and rapid monitoring, making it especially suitable for field use.

Features

14-inch touchscreen, a portable design with excellent hardware performance

14-inch touchscreen, supporting up to 8CH/150 MHz BW, 8CH/1 GHz BW, or 4CH/2 GHz BW configurations.

Superior multi-channel synchronous acquisition

With channel-to-channel synchronization accuracy superior to 100 ps across all product models, helps you easily achieve your multi-channel, high-precision synchronous acquisition goals.

Model parameters

KRO2152

Channels

Sampling rate

1GSa/s

Resolution

12bit

Bandwidth

150MHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO2154

Channels

Sampling rate

1GSa/s

Resolution

12bit

Bandwidth

150MHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO2156

Channels

Sampling rate

1GSa/s

Resolution

12bit

Bandwidth

150MHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO2158

Channels

Sampling rate

1GSa/s

Resolution

12bit

Bandwidth

150MHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO5152

Channels

Sampling rate

2.5GSa/s

Resolution

14bit

Bandwidth

1GHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO5154

Channels

Sampling rate

2.5GSa/s

Resolution

14bit

Bandwidth

1GHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO5156

Channels

Sampling rate

2.5GSa/s

Resolution

14bit

Bandwidth

1GHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO5158

Channels

Sampling rate

2.5GSa/s

Resolution

14bit

Bandwidth

1GHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO6121

Channels

Sampling rate

10GSa/s

Resolution

12bit

Bandwidth

2GHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO6122

Channels

Sampling rate

10GSa/s

Resolution

12bit

Bandwidth

2GHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

KRO6124

Channels

Sampling rate

10GSa/s

Resolution

12bit

Bandwidth

2GHz

Impedance

50Ω/1MΩ

Coupling

AC/DC

Ordering information

KRO2152

Portable Oscilloscope
2CH
1GSa/s sampling rate
150MHz BW

KRO2154

Portable Oscilloscope
4CH
1GSa/s sampling rate
150MHz BW

KRO2156

Portable Oscilloscope
6CH
1GSa/s sampling rate
150MHz BW

KRO2158

Portable Oscilloscope
8CH
1GSa/s sampling rate
150MHz BW

KRO5152

Portable Oscilloscope
2CH
2.5GSa/s sampling rate
1GHz BW

KRO5154

Portable Oscilloscope
4CH
2.5GSa/s sampling rate
1GHz BW

KRO5156

Portable Oscilloscope
6CH
2.5GSa/s sampling rate
1GHz BW

KRO5158

Portable Oscilloscope
8CH
2.5GSa/s sampling rate
1GHz BW

KRO6121

Portable Oscilloscope
1CH
10GSa/s sampling rate
2GHz BW

KRO6122

Portable Oscilloscope
2CH
10GSa/s sampling rate
2GHz BW

KRO6124

Portable Oscilloscope
4CH
10GSa/s sampling rate
2GHz BW

KDZ-SL1G

Memory depth extension option
Extends the maximum single-channel memory depth to 1Gpts.

KDZ-SL2G

Memory depth extension option
Extends the maximum single-channel memory depth to 1Gpts.
Not compatible with KDZ2152, KBZ2000 Series, KRZ2000Series, KCZ2000 Series, KSO2152, KBO2000 Series, KRO2000 Series, KCO2000 Series.

KDZ-SL4G

Memory depth extension option
Extends the maximum single-channel memory depth to 4Gpts.
Not compatible with KDZ2152, KBZ2000 Series, KRZ2000Series, KCZ2000 Series, KSO2152, KBO2000 Series, KRO2000 Series, KCO2000 Series.
