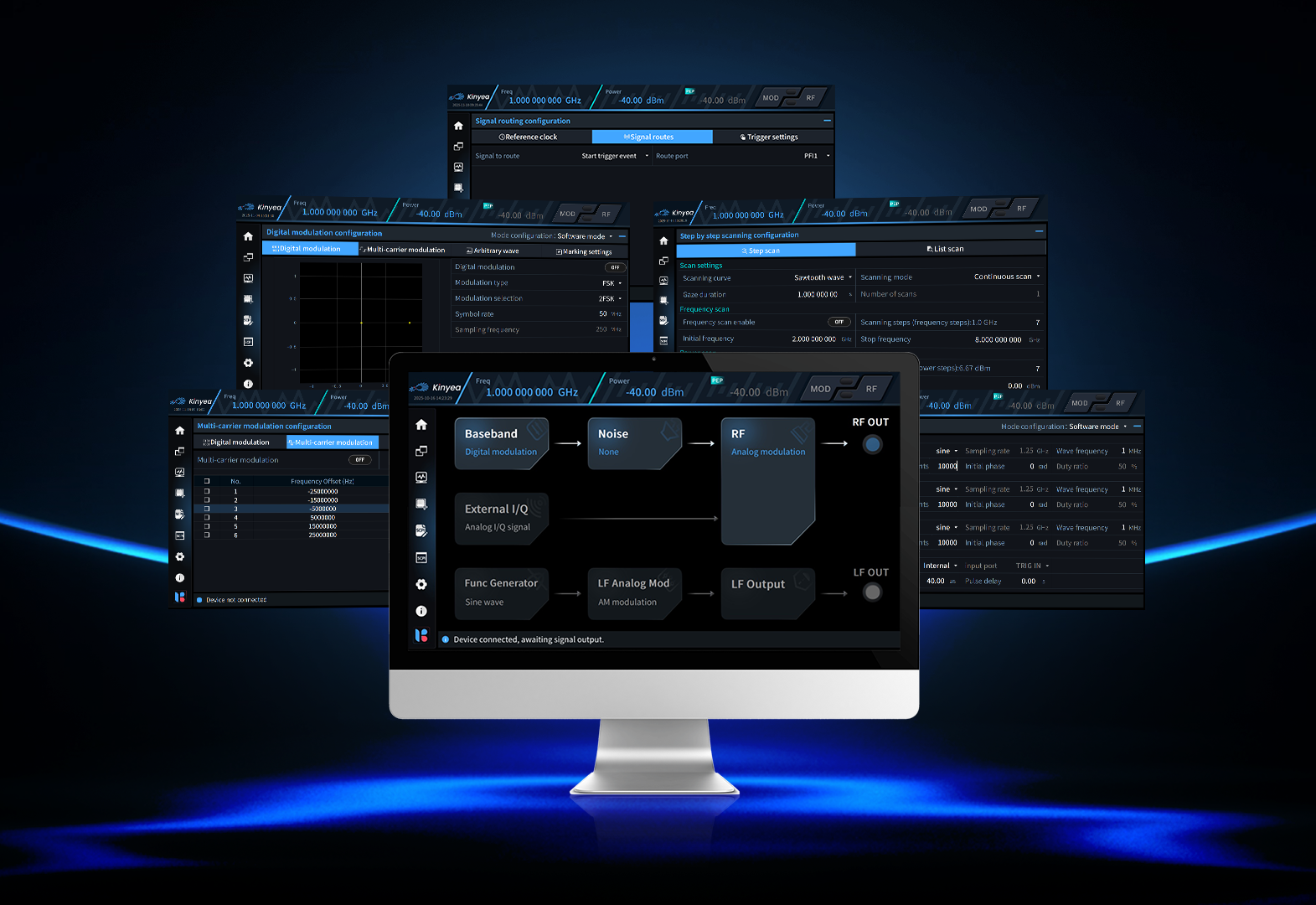

kyMCSG is the standard, pre-installed application for WSA and WST series products as-shipped configuration.

kyMCSG can configure wideband signal-generation MARSA® modules and MARSA® instruments to output a rich variety of RF signals. It also works as the MARSA® Operation System (kyMOS) for installing the rich suite of powerful kySP (Kinyea Signal Packet). The kySP covers more advanced signal generation functions oriented towards both signal characteristics and application scenarios. Advanced signal generation functions for signal characteristics include general modulated signal generation, analog modulation, pulse modulation, and more. Advanced signal generation functions for application scenarios include communications/ avionics/ GNSS/ radar/ data link signal generation, multi-channel concurrent generation, and high-capacity data playback.

WSG：KBG-308C、KVG5100S / KRG-800C / KCG-W800 / KVG62000C Series；
WST：KBT-308C、KRT-F / KCT-F / KRT92000C Series

•
  Comprehensive output configuration for single-tone, multi-tone, and arbitrary waveform signals.
•
  A rich set of frequency and power sweep functions.
•
  Flexible signal routing and trigger configuration.
•
  Supports the installation of a rich suite of kySP signal kits, allowing you to launch MARSA APL applications as easily as you would in the Windows operating system.

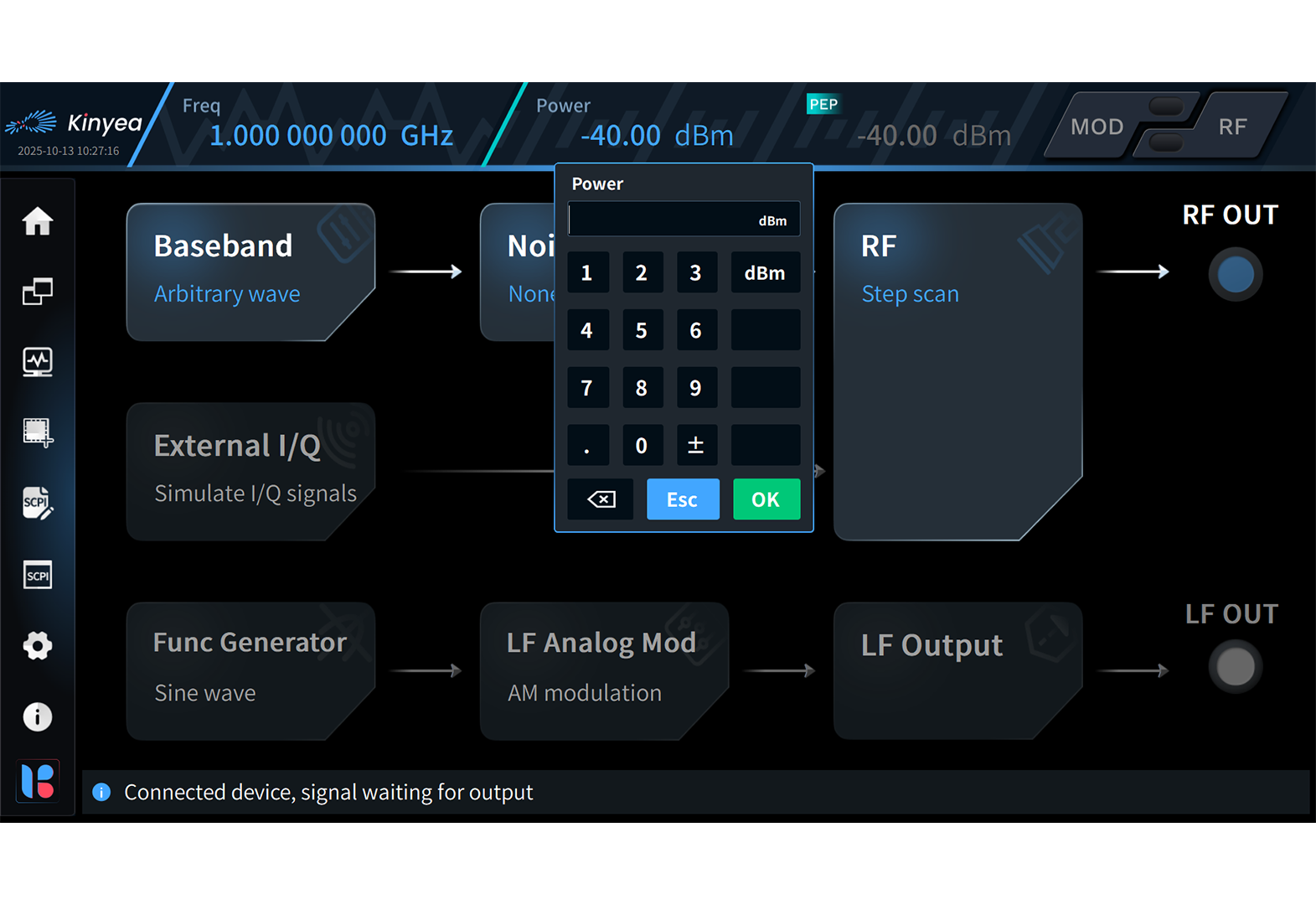

kyMCSG prominently displays the current frequency and power configuration information at the top of the main interface, enabling users to set these parameters intuitively and conveniently.

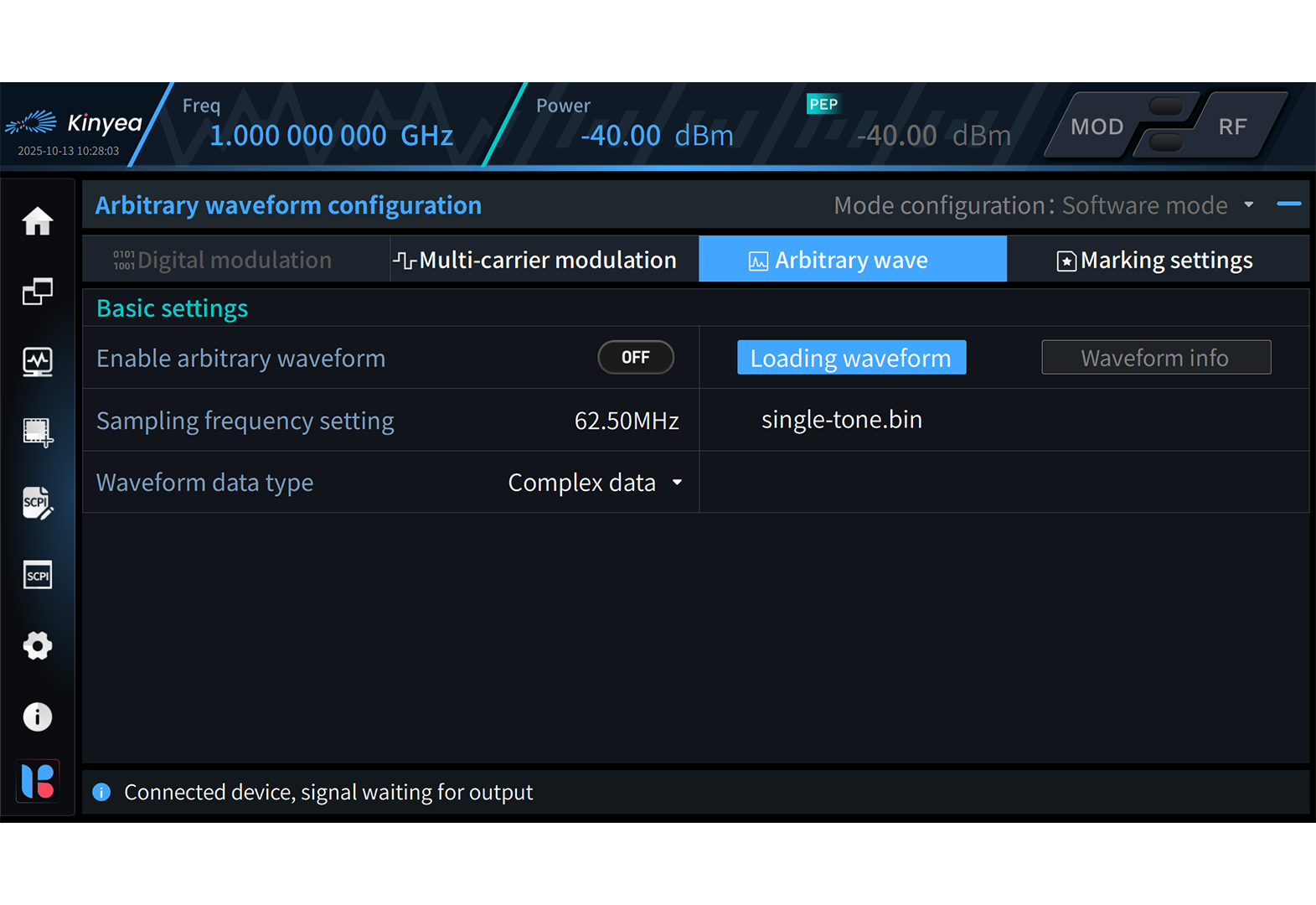

▶ Text Data Files: .txt, .kytxt
▶ Binary  Data File: .bin, .kybin_I16, .kybin_I32, .kybin_F32, .kybin_F64
▶ Comma-Separated Values (CSV) Files: .csv
▶ Encoded Data Files: .pcm, .dat

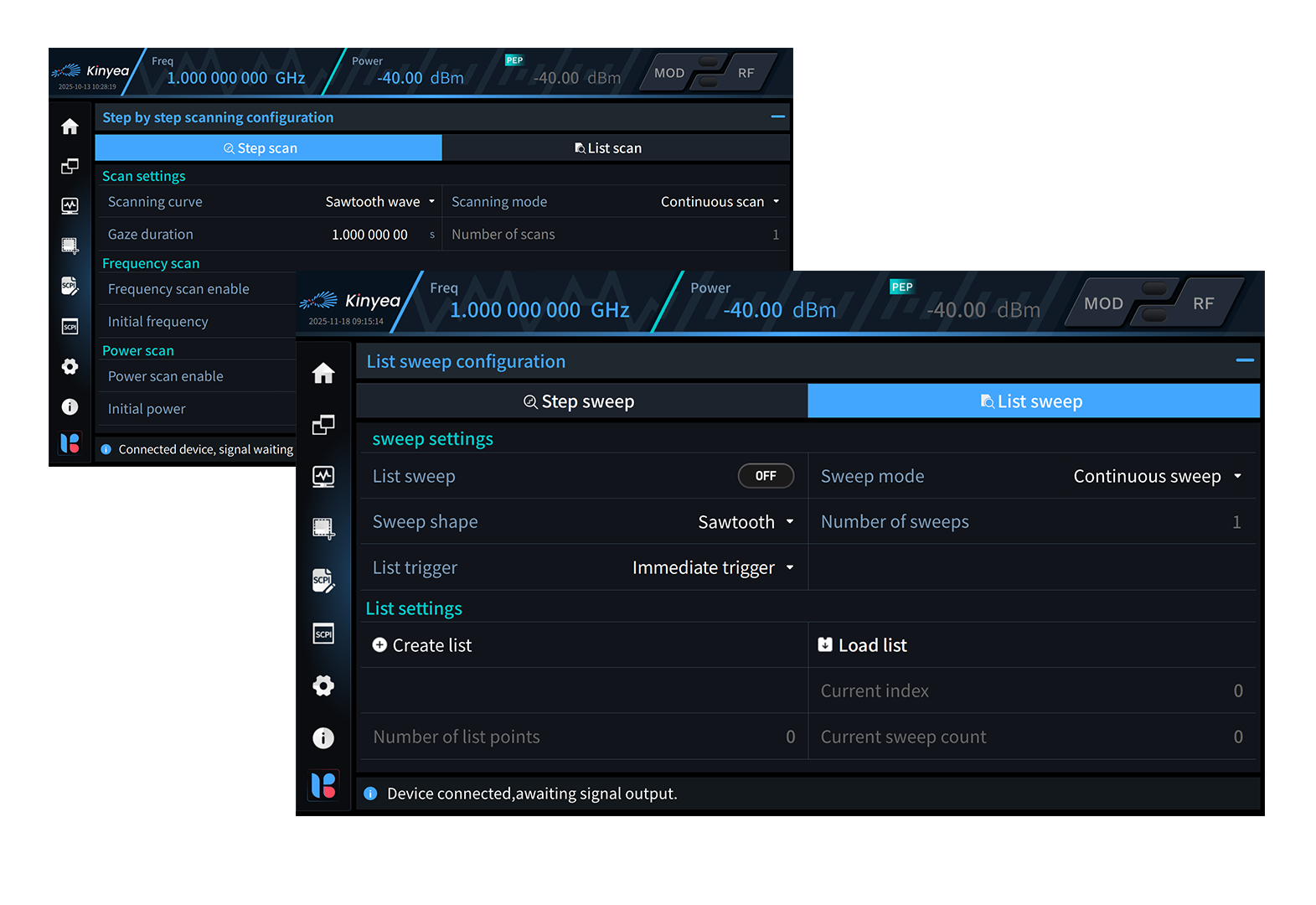

kyMCSG supports two sweep modes: Step Sweep and List Sweep.
In either sweep mode, the sweep can be performed with a Sawtooth or Triangle shape, in either Continuous or Single execution mode.

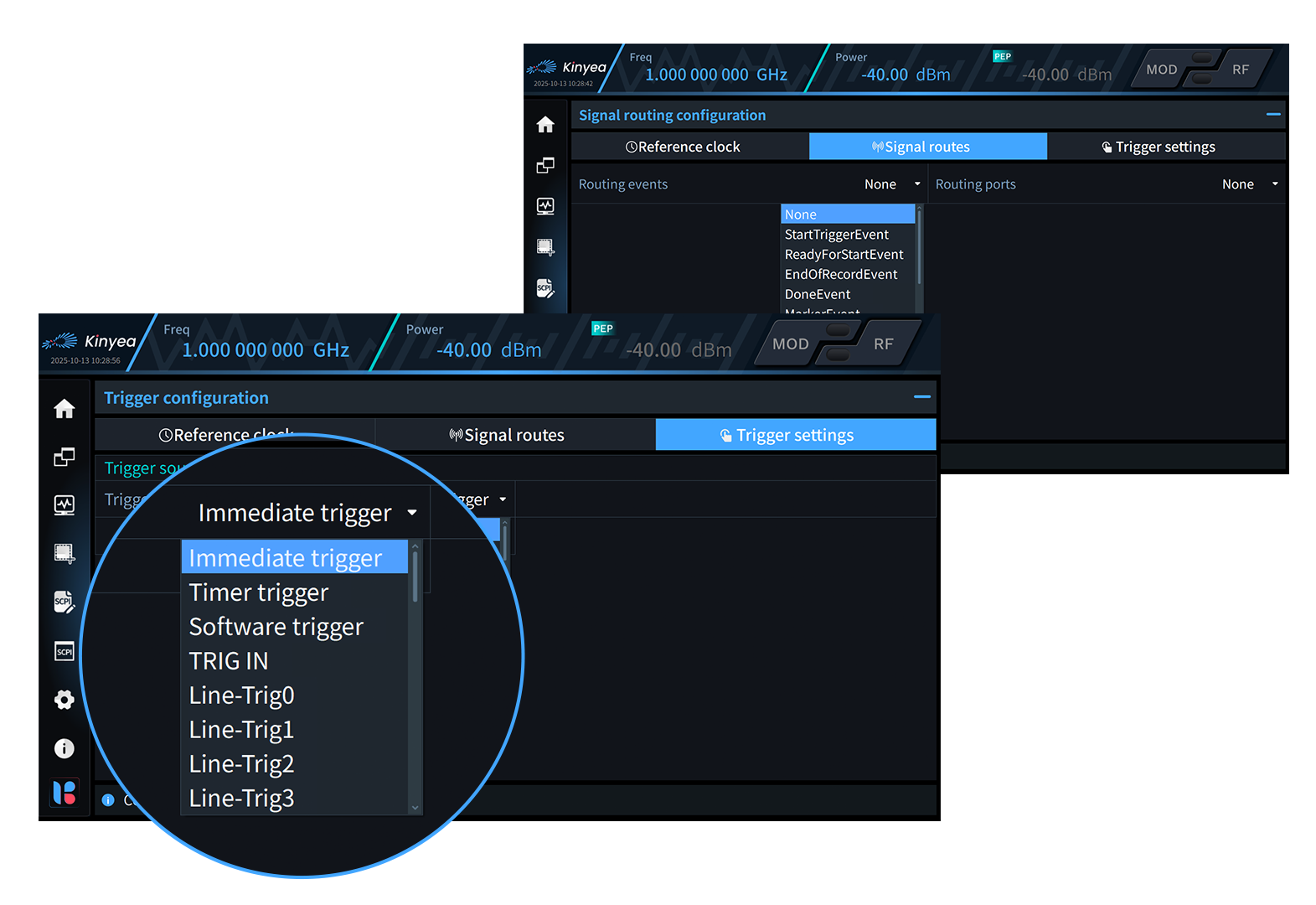

kyMCSG can provide rich and flexible event signal routing functionality, enabling the routing of internal functional events from the signal generator (signal source) to different physical ports.

kyMCSG supports configuration of multiple trigger sources including immediate trigger, timer trigger, software trigger, and external trigger, along with trigger edge and trigger delay configuration.
