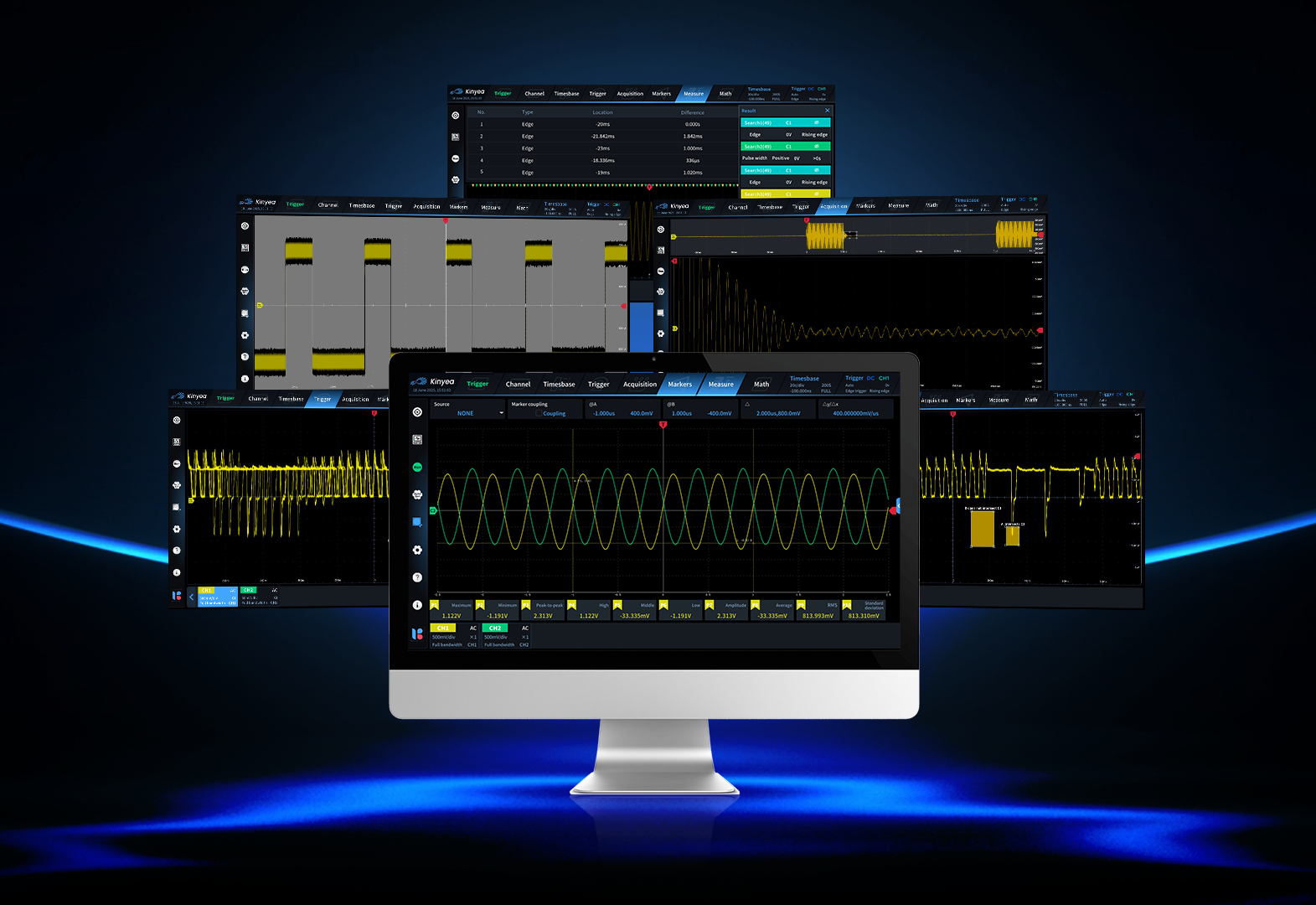

kyScope is the standard/pre-installed application for digitizers and oscilloscopes when shipped from the factory.

kyScope can not only perform conventional functions such as time-domain waveform acquisition, waveform triggering, waveform storage, and waveform analysis, but also serves as the MARSA operating system platform for installing the feature-rich kySP (Kinyea Signal Packet). The kySP covers advanced measurement and multi-type signal analysis functions. These advanced measurement and analysis capabilities include serial-bus protocol analysis, power analysis, eye-diagram and jitter analysis, and high-capacity storage recording.

High Speed  Digitizer：KDZ2000/5000/6000/7000 Series、KBZ / KRZ / KCZ Series；
Oscilloscope：KSO2000/5000/6000 Series、KBO / KRO / KCO Series.

•
  Supports high-resolution waveform acquisition and display functions.
•
  Supports flexible waveform filtering, searching, and analysis functions.
•
  Supports a rich set of advanced and zone triggering functions.
•
  Supports accurate and efficient high-speed mask testing functions.
•
  Supports the installation of a rich suite of kySP, allowing you to launch MARSA APL applications as easily as you would in the Windows operating system.

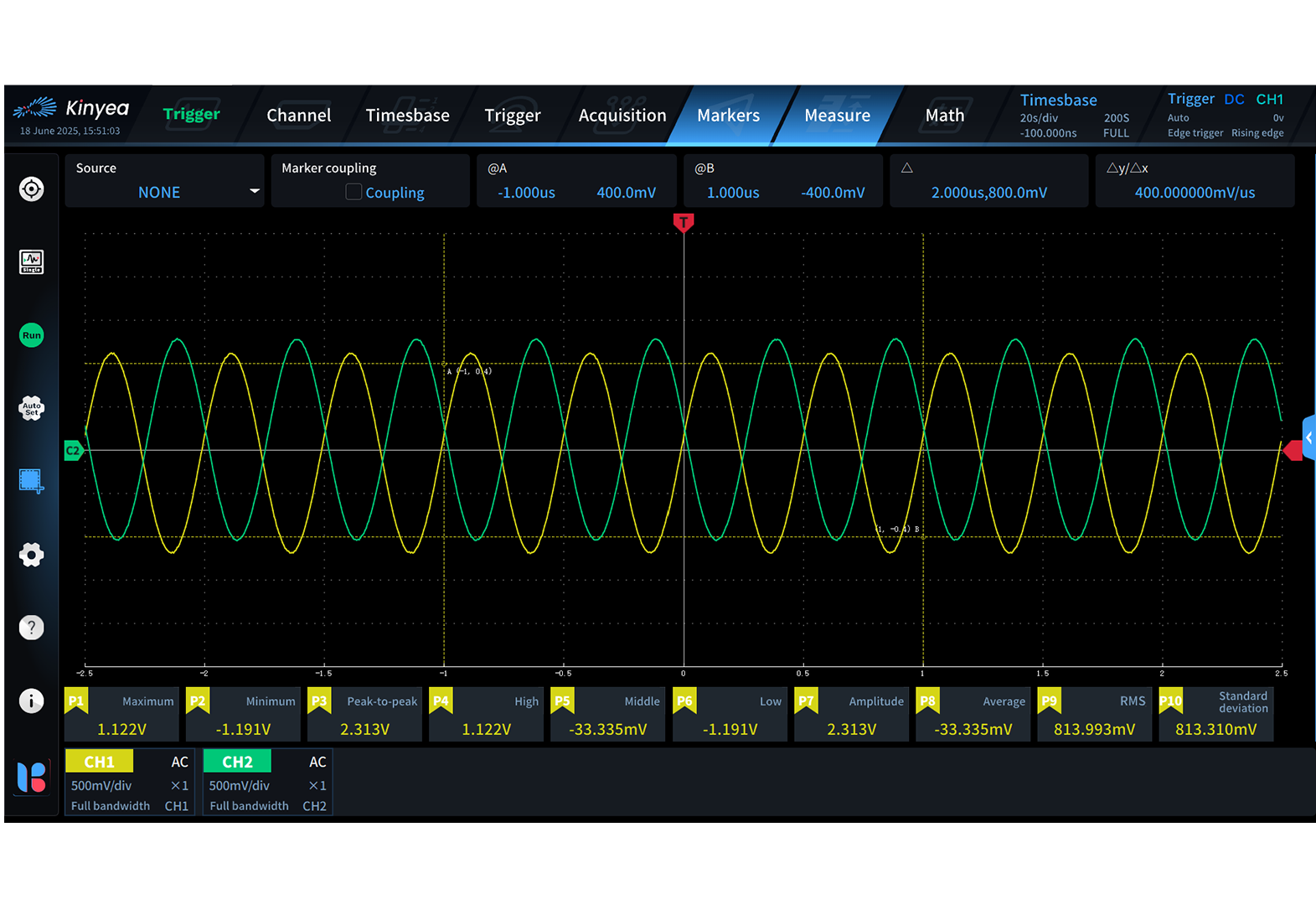

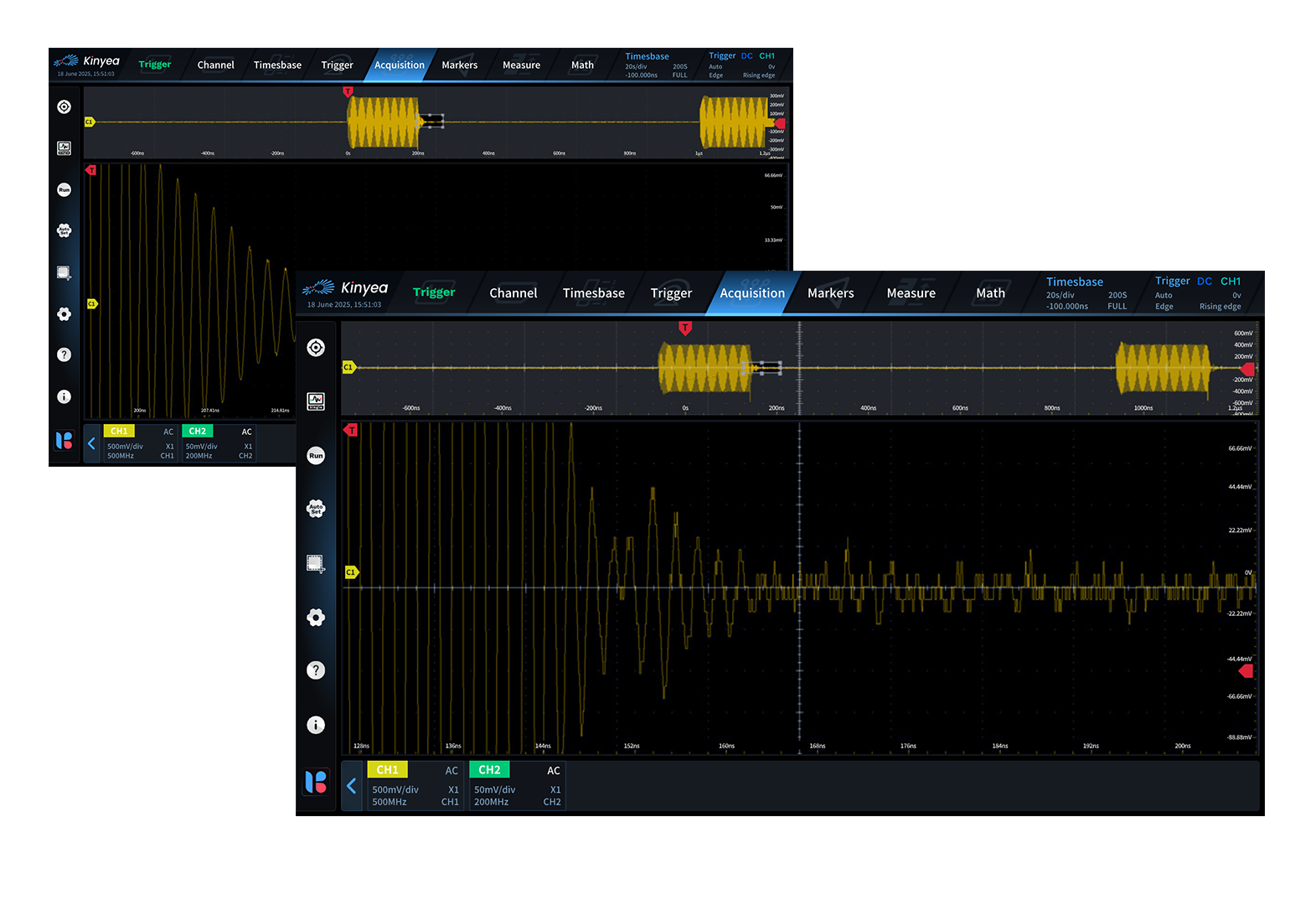

kyScope supports waveform display with up to 16-bit resolution. The zoom function enables both horizontal and vertical waveform scaling, providing better visualization of waveform details. This allows for precise measurement of weak voltage signals superimposed on large DC signals, and it is easier to differentiate between true jitter and noise components in jitter analysis.

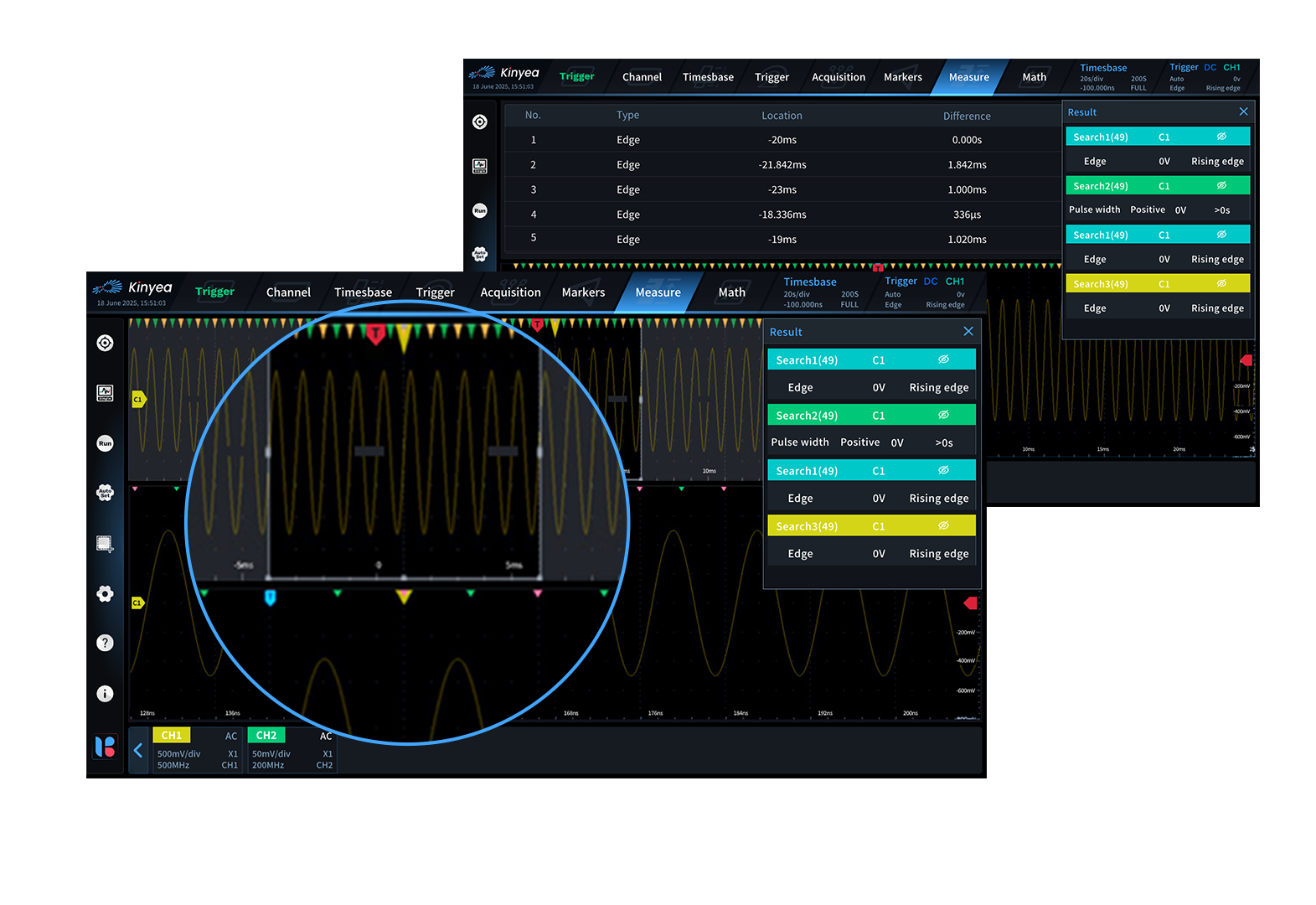

▶ Supports frame-by-frame viewing or continuous playback for rapid waveform browsing;
▶ Supports persistence playback with waveform overlay between specified start and end frames, enabling quick identification of abnormal signals across multiple frames;
▶ Supports automatic template-based waveform overlay with manual zone division for rapid filtering of specific waveforms;
▶ Supports waveform data filtering based on configured measurement conditions to quickly mark frames of interest;
▶ Enables quick navigation to points of interest in waveforms through search and analysis functions.

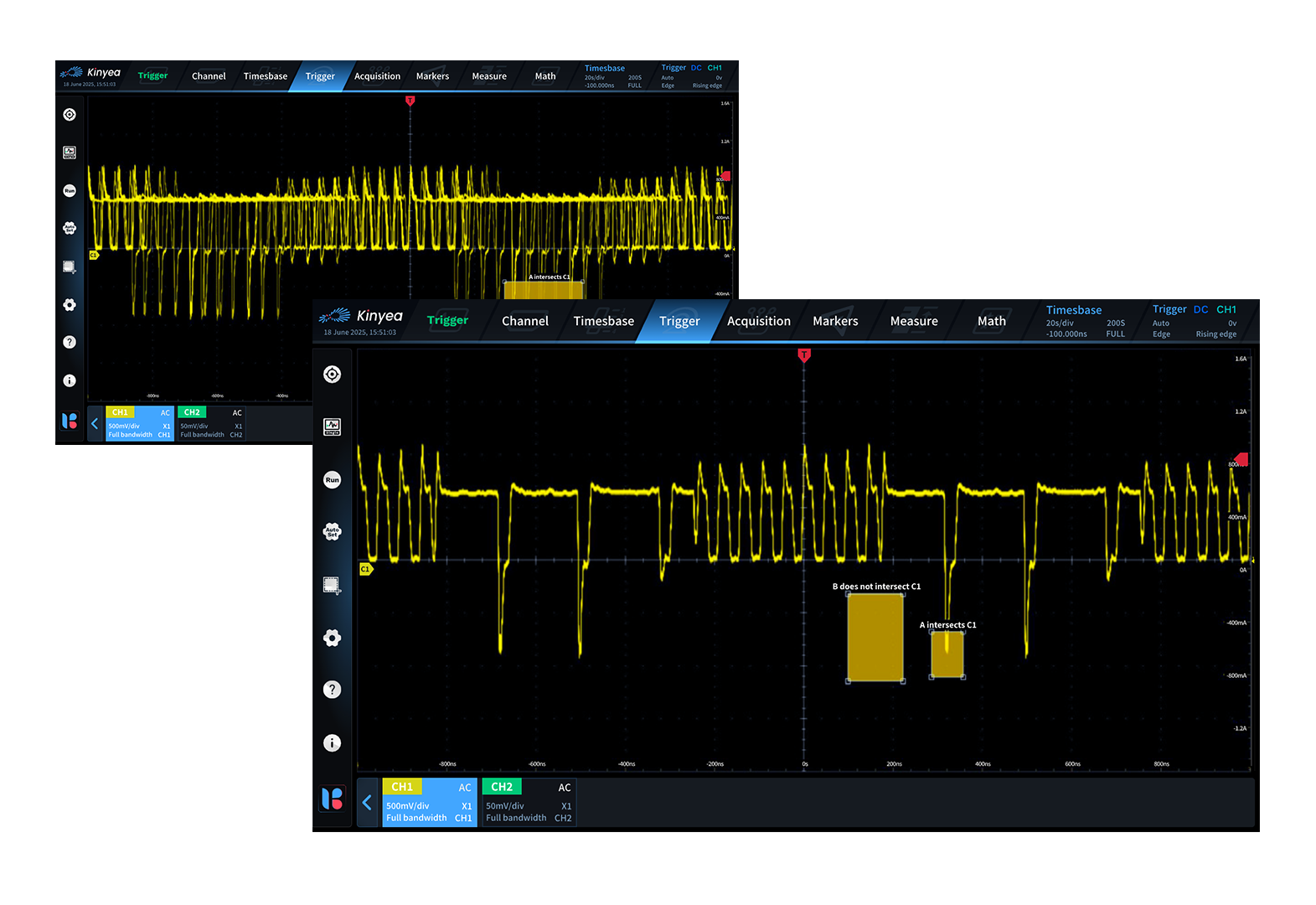

kyScope is equipped with a variety of advanced triggering functions that makes it easy to find anomalies in very long data records during complex system debugging. Combined with serial triggering for various standard protocols, it enables rapid debugging. It also supports a flexible and convenient regional trigger, which can quickly capture signals of interest. This helps users find key waveforms in a short amount of time, improving overall debugging efficiency.

kyScope supports creating limit templates from standard waveforms to meet industrial production line testing requirements. Users can customize the vertical and horizontal tolerances for template testing, set the total number of allowable violations, configure the test duration by waveform count or total time, and define failure actions including waveform saving, software alerts, pulse generation, or screen capture. Particularly suitable for long-term automated monitoring of abnormal signals.
