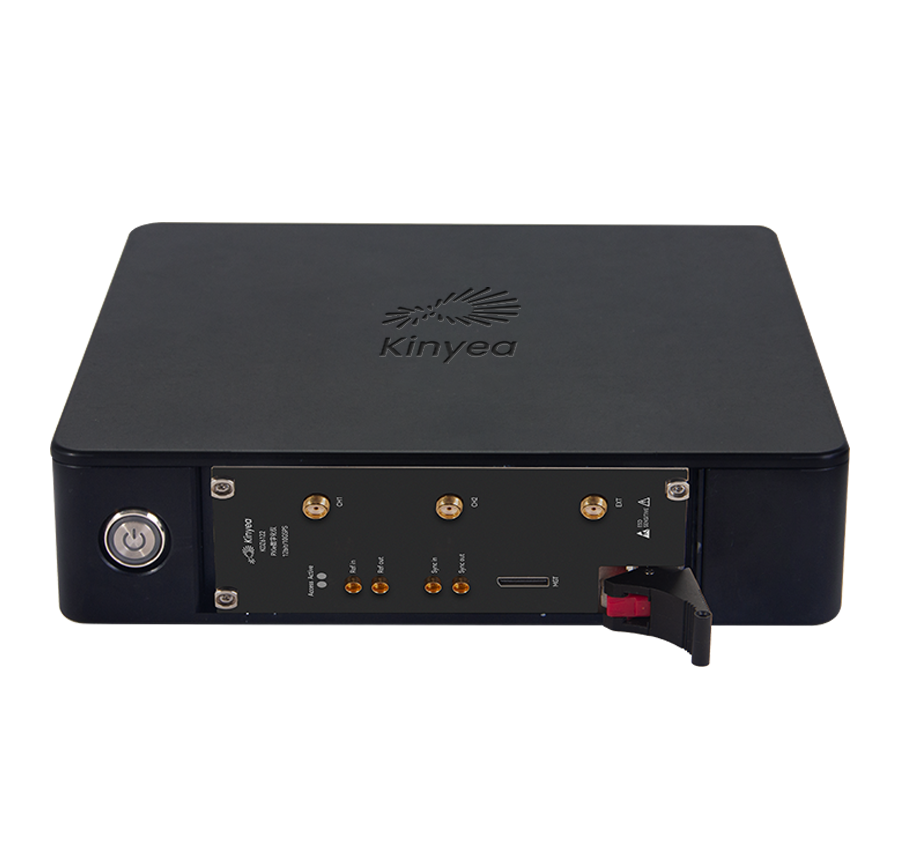

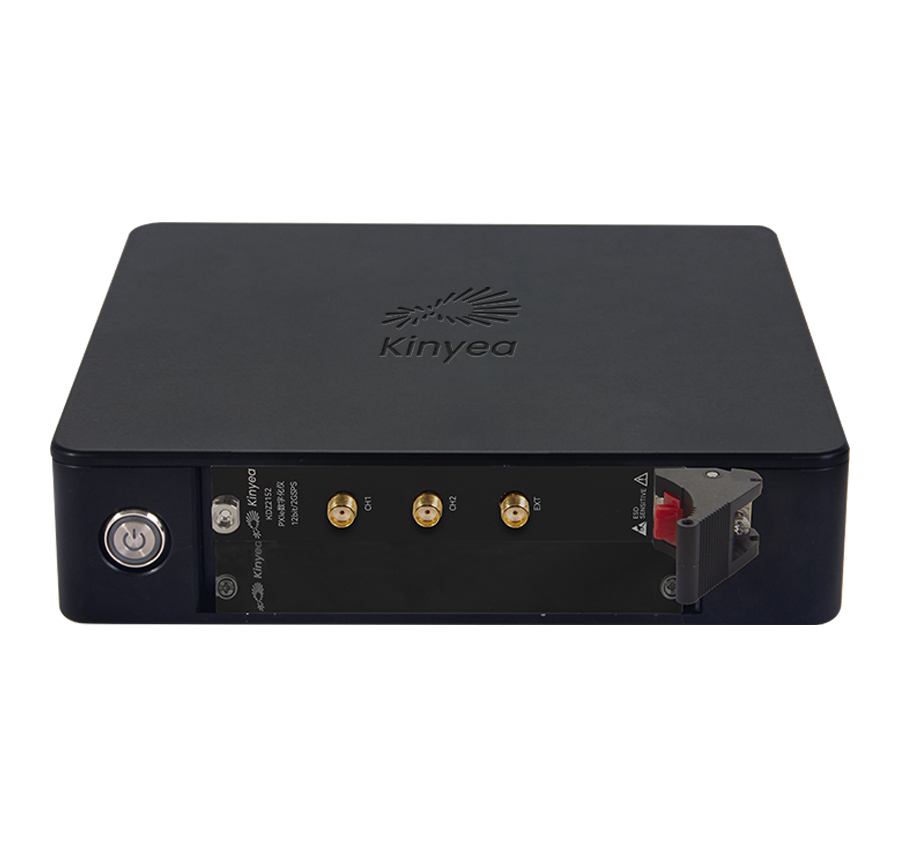

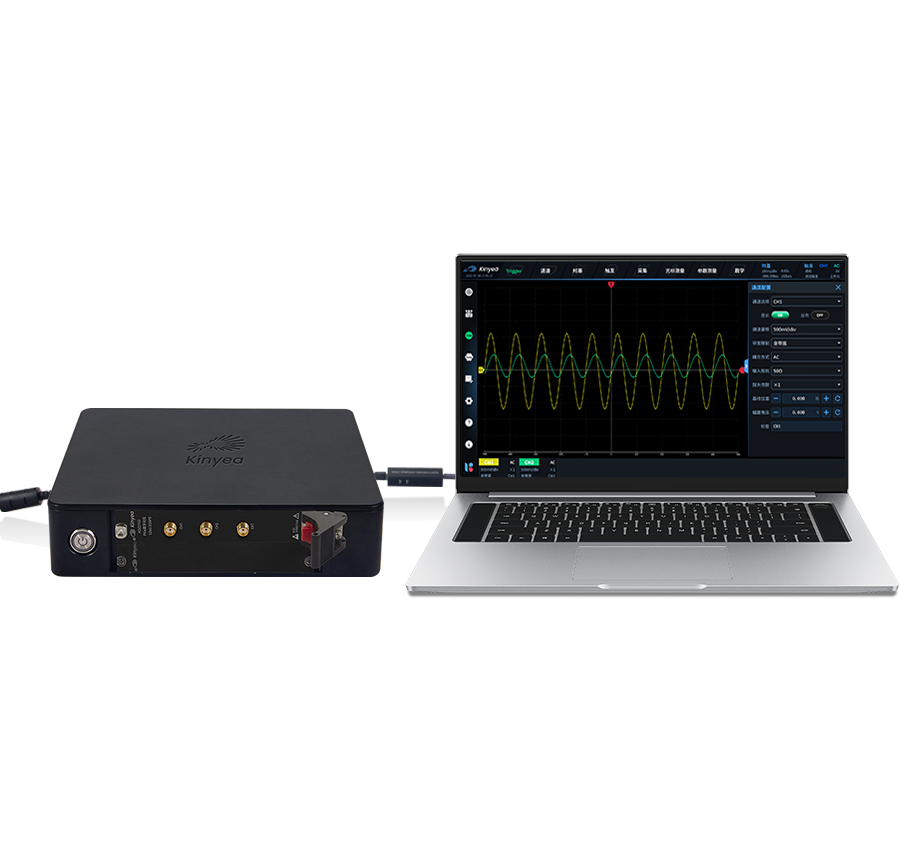

Up to 4 Channels, maximum 20 GSa/s Sample Rate With a pocket-size (210mm x 200mm x 53mm) , it integrates high-speed, high-precision data acquisition and processing at speeds of up to 20 GSa/s. A comprehensive suite of API drivers enhances the instrument's suitability for custom development. Furthermore, the pre-installed kyScope software provides convenience for general-purpose testing and rapid monitoring.

Features

Compact Design, superior Performance

With a pocket-size body (210mm x 200mm x 53mm, that fits in one hand, this grab-and-go device is always ready for action. it supports up to 4 channels with a maximum sample rate of 20 GSa/s. Its design allows for the easy construction of multi-node, distributed signal acquisition systems.

Superior multi-channel synchronous acquisition

With channel-to-channel synchronization accuracy superior to 100 ps across all product models, helps you easily achieve your multi-channel, high-precision synchronous acquisition goals.

Model parameters

KBZ2152

Channels

Sampling rate

Single-CH: 2GSa/s Dual-CH: 1GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 1Gpts

KBZ2154

Channels

Sampling rate

All-CH: 1GSa/s Half-CH: 2GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 1Gpts

KBZ5152

Channels

Sampling rate

Single-CH: 5GSa/s Dual-CH: 2.5GSa/s

Resolution

14bit

Impedance

50Ω

Memory

Single-CH: MAX. 4Gpts

KBZ5154

Channels

Sampling rate

All-CH: 2.5GSa/s Half-CH: 5GSa/s

Resolution

14bit

Impedance

50Ω

Memory

Single-CH: Max. 4Gpts

KBZ6121

Channels

Sampling rate

10GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 4Gpts

KBZ6122

Channels

Sampling rate

10GSa/s per CH

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 4Gpts

KBZ7241

Channels

Sampling rate

20GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 4Gpts

Ordering information

KBZ2152

High Speed Box Digitizer
2CH，2GSa/s

KBZ2154

High Speed Box Digitizer
4CH，2GSa/s

KBZ5152

High Speed Box Digitizer
2CH，5GSa/s

KBZ5154

High Speed Box Digitizer
4CH，5GSa/s

KBZ6121

High Speed Box Digitizer
1CH，10GSa/s

KBZ6122

High Speed Box Digitizer
2CH，10GSa/s

KBZ7241

High Speed Box Digitizer
1CH，20GSa/s

KDZ-SL1G

Memory depth extension option
Extends the maximum single-channel memory depth to 1Gpts.

KDZ-SL2G

Memory depth extension option
Extends the maximum single-channel memory depth to 1Gpts.
Not compatible with KDZ2152, KBZ2000 Series, KRZ2000Series, KCZ2000 Series, KSO2152, KBO2000 Series, KRO2000 Series, KCO2000 Series.

KDZ-SL4G

Memory depth extension option
Extends the maximum single-channel memory depth to 4Gpts.
Not compatible with KDZ2152, KBZ2000 Series, KRZ2000Series, KCZ2000 Series, KSO2152, KBO2000 Series, KRO2000 Series, KCO2000 Series.
