1Rx/1Tx, 100kHz~8GHz, Max. 1GHz BW This instrument has a portable, all-in-one design. Configure the instrument withkyRT-xTS to instantly enable high-capacity data recorder and playback instrument capabilities. Furthermore, by pairing with a rich suite of both signal analysis & processing and signal generation kySP applications, it can also perform simulation and analysis of navigation, radar, and data link signals, making it especially suitable for field use.

Features

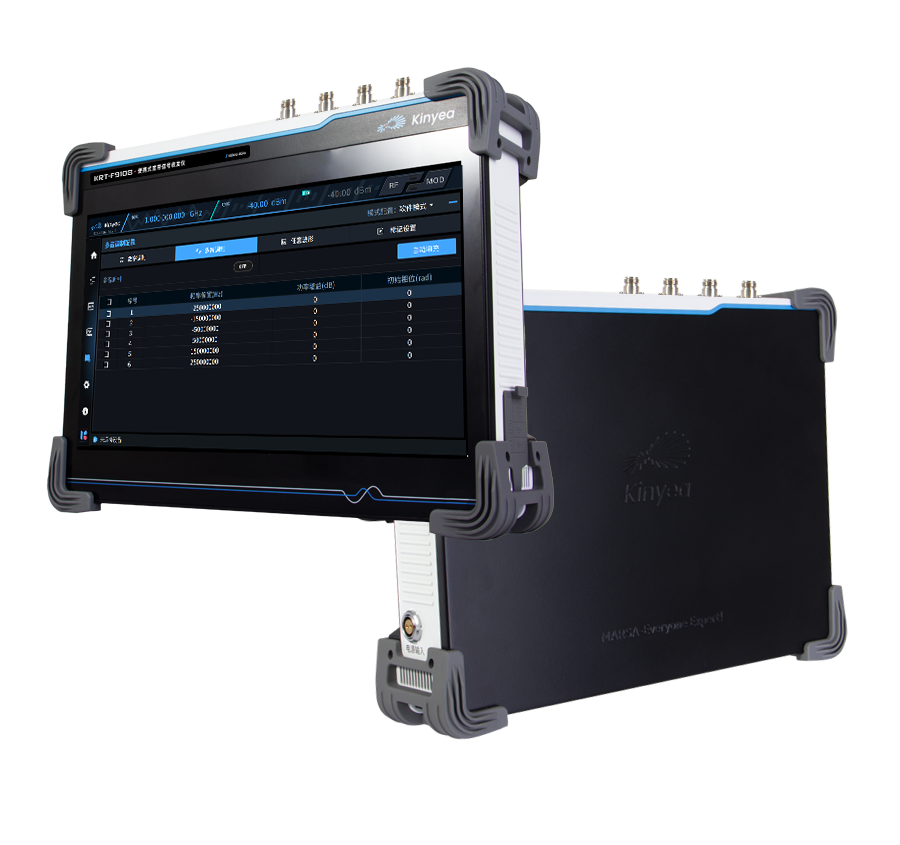

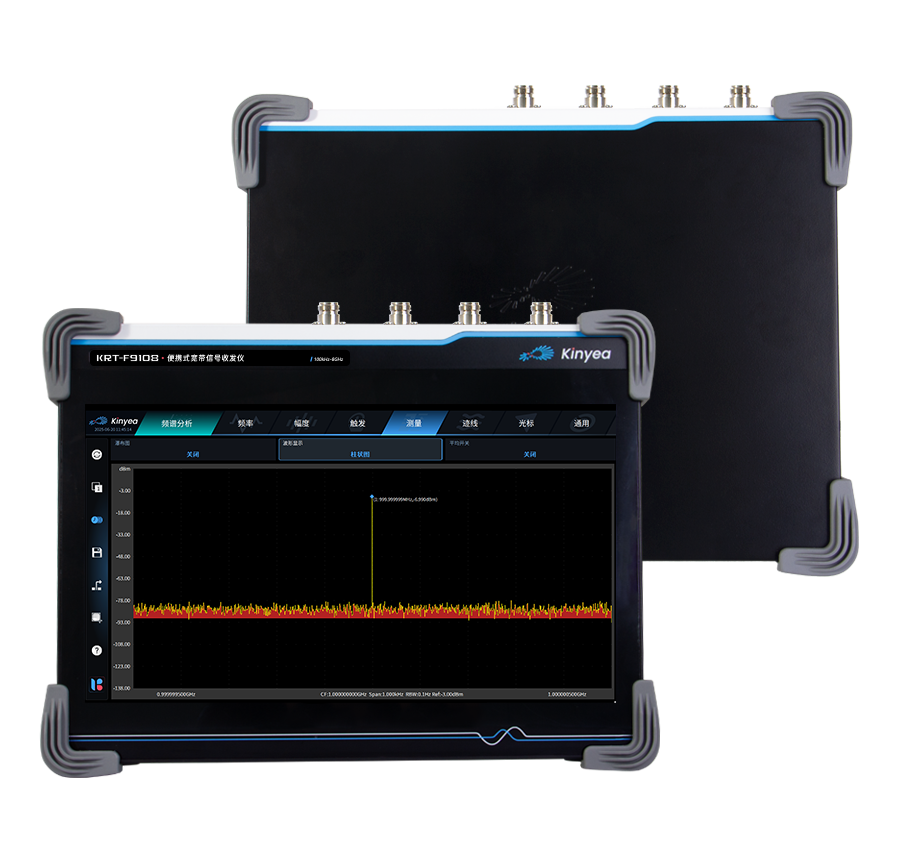

14-Inch touchscreen in a portable design with excellent hardware performance

Featuring a 14-inch touchscreen, this instrument provides transceiver channel covering a maximum frequency range of 100 kHz to 8 GHz. It offers a maximum analysis bandwidth of 1000 MHz and is designed for both indoor and field use.

Pre-installed kyMCSA and kyMCSG, utilizing up to 1000 MHz instantaneous transceiver bandwidth for multi-domain processing

Transceiver Bandwidth Options: 50MHz (Standard), 100MHz, 200MHz, 500MHz, and 1000MHz
Features include: Spectrum Analysis, Power Analysis, I/Q Analysis, Generation Parameter Configuration, Arbitrary Waveform Loading, Temperature Monitoring, etc.

Configure the instrument with kyR(T)-xTS and kyR(T)-KC to instantly enable high-capacity data recorder and playback instrument capabilities

Storage capacities: 8 TB, 16 TB, 32 TB  to even larger. The recording and playback bandwidth is identical to the transceiver bandwidth. Furthermore, equipping it with the kyR(T)-KC and kyR(T)-CS-SSD applications enables  multi-channel parallel data streaming to disk and playback capabilities.

Enhance its capabilities by adding various kySP applications, instantly transforming it into a specialized transceiver in different fields

For example: 5G NR/Wi-Fi/BLE Signal Analysis and Generation kySP, ADS-B/AIS Signal Analysis and Generation kySP, GPS/BDS Signal Analysis and Generation kySP, etc.

Model parameters

KRT-F9108

Channels

1Rx，1Tx

Frequency range

Rx：100kHz~8GHz Tx：100kHz~8GHz

Max. Input power

+15dBm

Output power

-120dBm~+10dBm

Analysis BW

MAX. 1GHz

Generation BW

MAX. 1GHz

Ordering information

KRT-F9108

Portable Wideband Signal Transceiver
1Rx/1Tx
100kHz~8GHz
50MHz transceiver BW

KR-NTC

Rugged screenless panel option

kyR-BW100

Bandwidth extension option
Extend analysis BW to 100MHz

kyR-BW200

Bandwidth extension option
Extend analysis BW to 200MHz

kyR-BW500

Bandwidth extension option
Extend analysis BW to 500MHz

kyR-BW1000

Bandwidth extension option
Extend analysis BW to 1000MHz

kyT-BW100

Bandwidth extension option
Extend generation BW to 100MHz

kyT-BW200

Bandwidth extension option
Extend generation BW to 200MHz

kyT-BW500

Bandwidth extension option
Extend generation BW to 500MHz

kyT-BW1000

Bandwidth extension option,
Extend generation BW to 1000MHz

kyRT-BW100

Bandwidth extension option
Extend transceiver BW to 100MHz

kyRT-BW200

Bandwidth extension option
Extend transceiver BW to 200 MHz

kyRT-BW500

Bandwidth extension option
Extend transceiver BW to 500 MHz

kyRT-BW1000

Bandwidth extension option
Extend transceiver BW to 1000MHz

kyR-KC8

Multi-channel Selection and Acquisition SP
8CH HDDC for selection and acquisition, without onboard SSD storage

kyT-KC8

Multi-Channel Concurrent Generation SP
8CH HDUC for concurrent generation, without onboard SSD storage

[kyR]Signal Analysis & Processing kySP

kyR-GVSA、kyR-AMD、kyR-PTM、kyR-PNA、kyR-NFA、kyR-OFDM、kyR-NR、kyR-WLAN、kyR-BLE、kyR-ADSB、kyR-AIS、kyR-ACARS……

[kyT]Signal Generation & Stimulus kySP

kyT-GVSG、kyT-AMD、kyT-PMD、kyT-OFDM、kyT-RADAR、kyT-NR、kyT-WLAN、kyT-BLE、kyT-ADSB、kyT-AIS、kyT-ACARS、kyT-GPS……
