Features

• 14-Inch touchscreen in a portable design with excellent hardware performance

  Featuring a 14-inch touchscreen, this instrument supports frequencies up to 43.5 GHz and a maximum of two 8 GHz channels, each with an analysis bandwidth of up to 1000 MHz. It is designed for both indoor and field use

• Pre-installed with kyMCSA to perform multi-domain processing using up to 1000 MHz of instantaneous analysis bandwidth

  Bandwidth Options: 50MHz (Standard), 100MHz, 200MHz, 500MHz, and 1000MHz.
  Features  include spectrum analysis, sweep frequency detection, power analysis, I/Q analysis, and temperature monitoring functions.

• Configure the instrument with kyR-xTS and kyR-KC to instantly enable high-capacity data recording capabilities

  Storage capacities: 8 TB, 16 TB, 32 TB  to even larger,  and supports continuous recording and storage for signals with a bandwidth of up to 1000 MHz. Additionally, the kyR-KC series of kySP allows you to implement multi-channel, variable-bandwidth acquisition and storage functions inside the Wideband Signal Analyzer (WSA).

• Enhance its capabilities by adding various kySP applications, instantly transforming it into a specialized analyzer for different fields

  For example:  Analog Signal Demodulation SP, General Digital Demodulation kySP, Phase Noise Analysis kySP, 5G NR Signal Analysis kySP, ADS-B Signal Analysis kySP, GPS Signal Analysis kySP, Signal Identification kySP, etc.

Model parameters

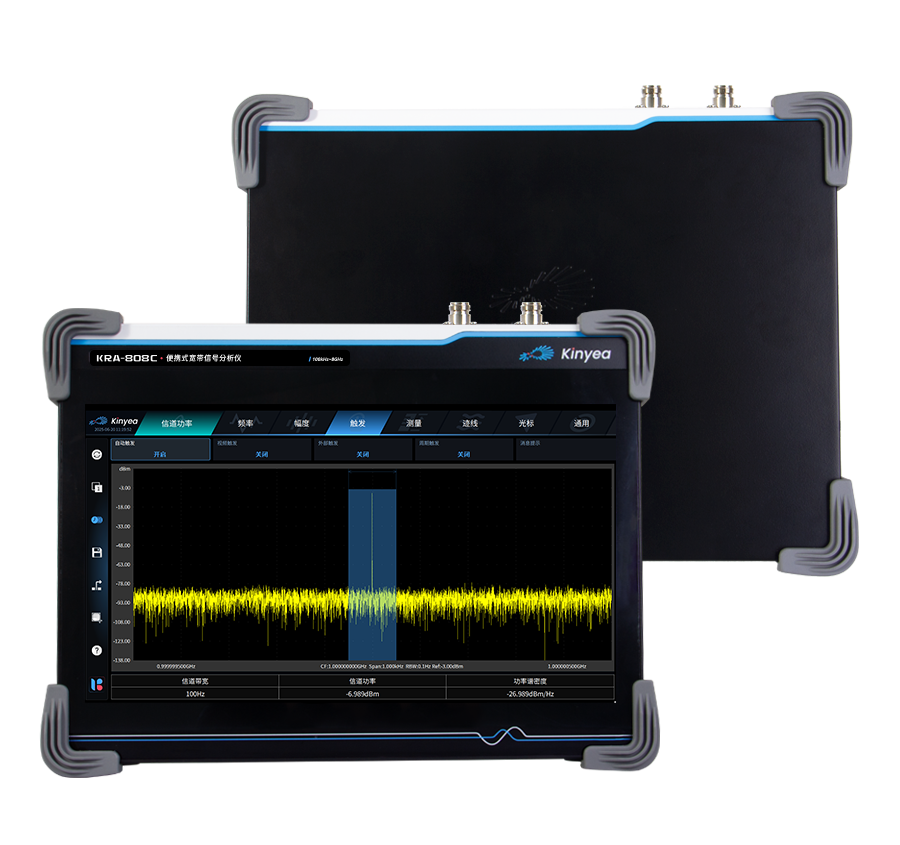

KRA-808C

Frequency range

100kHz~8GHz

Instantaneous BW

MAX. 1GHz

Max. Input Power

+15dBm

Accuracy

1MHz~300MHz： ±0.7dB 300MHz~6GHz： ±1dB 6GHz~8GHz： ±1.2dB

Flatness

300MHz~6GHz： ≤±1dB 6GHz~8GHz： ≤±1.5dB

DANL

100kHz~8GHz： ≤-158dBm/Hz

KRA-808C-2

Frequency range

CH1：100kHz~8GHz CH2：100kHz~8GHz

Instantaneous BW

MAX. 1GHz

Max. Input Power

+15dBm

Accuracy

1MHz~300MHz： ±0.7dB 300MHz~6GHz： ±1dB 6GHz~8GHz： ±1.2dB

Flatness

300MHz~6GHz： ≤±1dB 6GHz~8GHz： ≤±1.5dB

DANL

100kHz~8GHz： ≤-158dBm/Hz

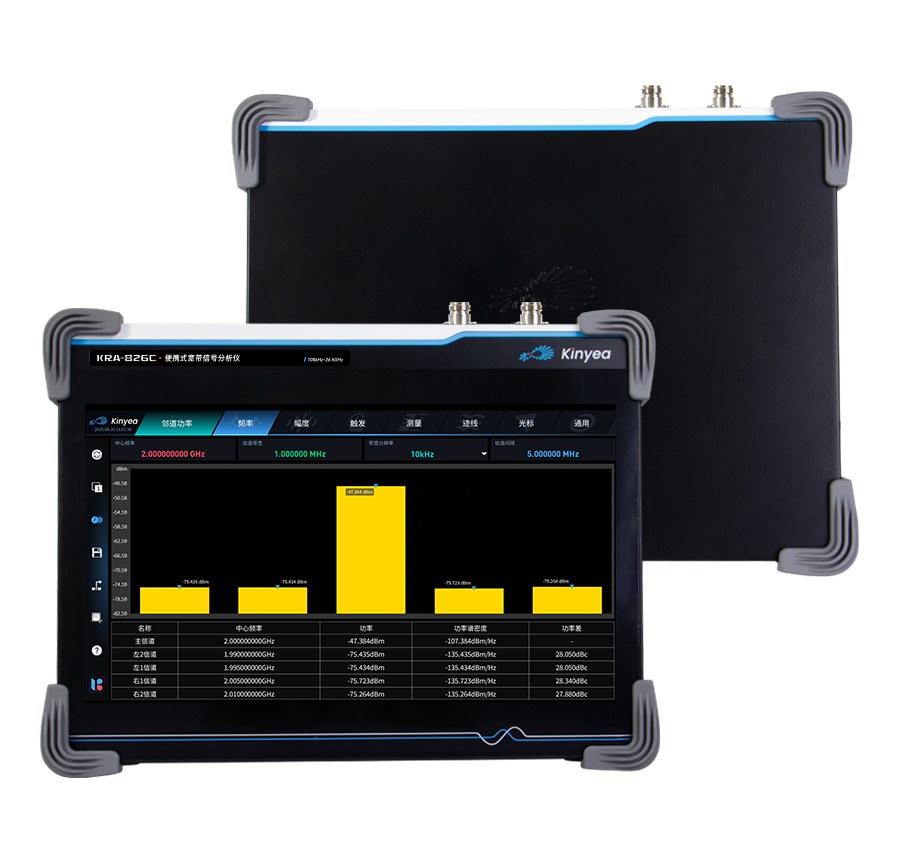

KRA-826C

Frequency range

100kHz~26.5GHz

Instantaneous BW

MAX. 1GHz

Max. Input Power

+15dBm

Accuracy

1MHz~8GHz： Smae as KRA-808C 8GHz~26.5GHz： ±1.5dB

Flatness

300MHz~6GHz： ≤±1dB 6GHz~26.5GHz： ≤±1.5dB

DANL

100kHz~26.5GHz： ≤-158dBm/Hz

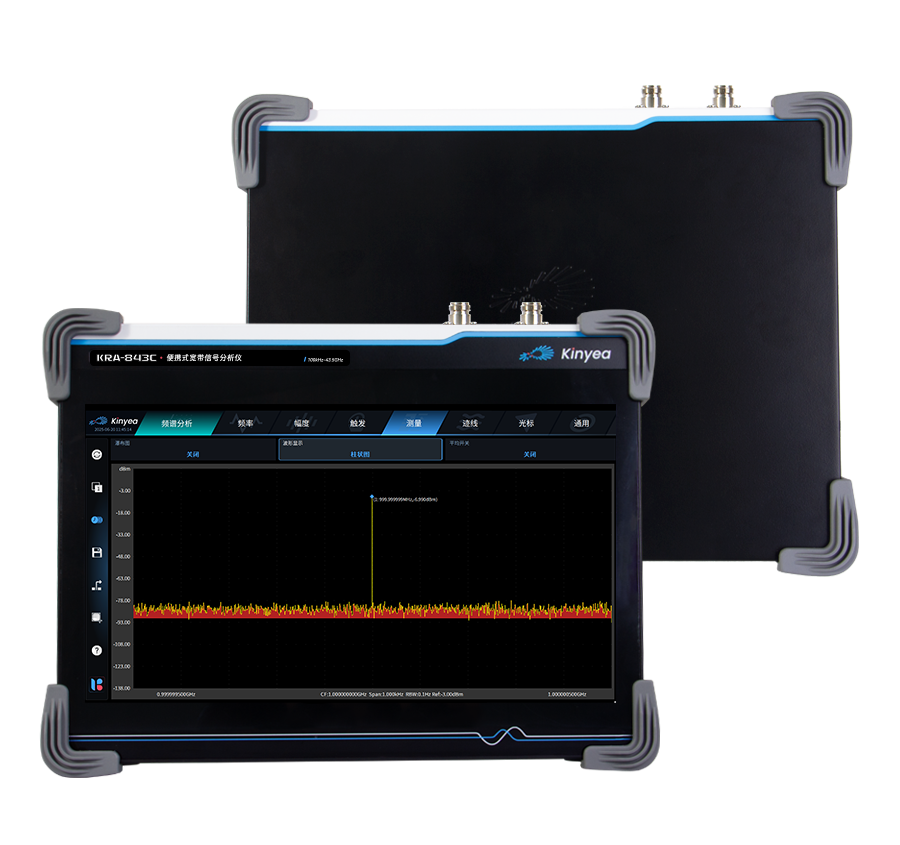

KRA-843C

Frequency range

100kHz~43.5GHz

Instantaneous BW

MAX. 1GHz

Max. Input Power

+15dBm

Accuracy

1MHz~26.5GHz： Same as KRA-826C 26.5GHz~43.5GHz： ±1.8dB

Flatness

300MHz~26.5GHz： Same as KRA-826C 26.5GHz~43.5GHz： ≤±2dB

DANL

100kHz~26.5GHz： ≤-156dBm/Hz 26.5GHz~43.5GHz： ≤-140dBm/Hz

Ordering information

KRA-808C

Portable Wideband Signal Analyzer
100kHz~8GHz
 50MHz analysis BW

KRA-808C-2

Portable Wideband Signal Analyzer
2CH
100kHz~8GHz
50MHz analysis BW

KRA-826C

Portable Wideband Signal Analyzer
100kHz~26.5GHz
 50MHz analysis BW

KRA-843C

Portable Wideband Signal Analyzer
100kHz~43.5GHz
50MHz analysis BW

kyR-BW100

Bandwidth extension option
Extend analysis BW to 100MHz

kyR-BW200

Bandwidth extension option
Extend analysis BW to 200MHz

kyR-BW500

Bandwidth extension option
Extend analysis BW to 500MHz

kyR-BW1000

Bandwidth extension option
Extend analysis BW to 1000MHz

[kyR]Large capacity recording kySP

kyR-8TS, kyR-16TS, kyR-32TS

[kyR]Multi-channel selection kySP

kyR-KC8, kyR-KC16, kyR-KC32, kyR-KC64, kyR-KC128, kyR-CS-SSD

[kyR]Signal Analysis & Processing kySP(1)

kyR-GVSA, kyR-AMD, kyR-PTM, kyR-PNA, kyR-NFA, kyR-OFDM, kyR-AMD-RT, kyR-GVSA-RT, kyR-ASK-RT, kyR-PSK-RT, kyR-FSK-RT, kyR-QAM-RT, kyR-OFDM-RT……

[kyR]Signal Analysis & Processing kySP(2)

kyR-NR, kyR-WLAN, kyR-BLE, kyR-ADSB, kyR-AIS, kyR-ACARS, kyR-GPS, kyR-BDS, kyR-LK11, kyR-SRC……
