Kinyea Technologies has defined a series of product enhancement features as kySP (Signal Packet), with these comprehensive and powerful SP capabilities delivering diversified value-added services.

The kyR(T)-xTS fully utilizes hybrid computing resources while deeply integrating software and hardware advantages. It masters the two critical pathways—the high-speed inflow and outflow of massive data to and from solid-state storage. This helps you perform parameter feature extraction and signal synthesis based on big data, thereby significantly enhancing decision-making value output.

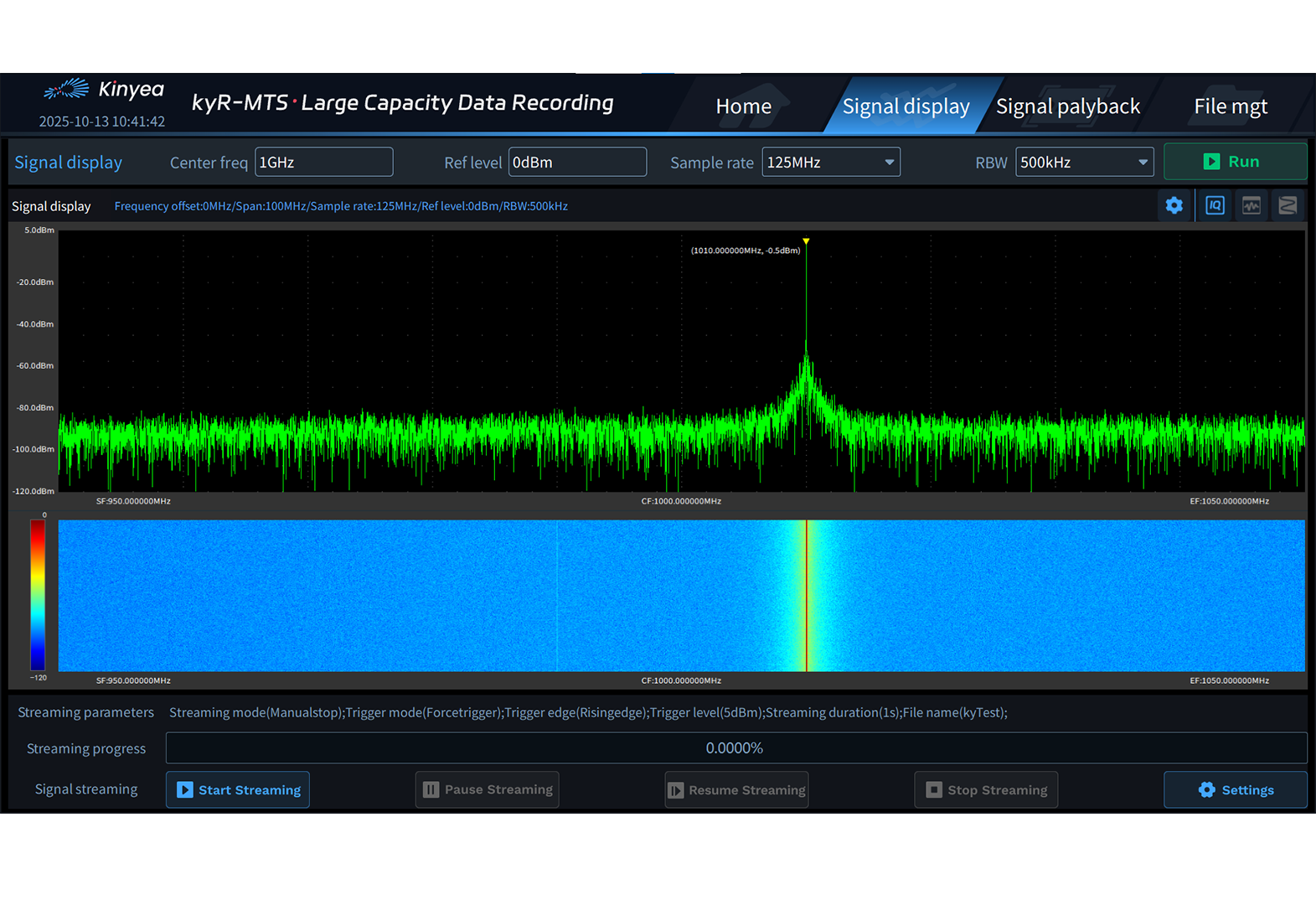

kyR-xTS includes four versions: kyR-MTS, kyR-8TS, kyR-16TS, and kyR-32TS. They are designed for high-speed streaming and recording of data from WST, WSA, and Digitizer series products. The maximum streaming bandwidth of the kyR-xTS is 1 GHz, with a maximum recording speed of over 5 GB/s.
kyR-MTS is suitable for WSA and Digitizer products within the MARSA Module series, enabling you to configure KSD series products  to meet your storage capacity requirements. As for kyR-8TS (8TB), kyR-16TS (16TB), and kyR-32TS (32TB) are suitable for WST, WSA, and Digitizer products within the MARSA Instrument series and do not require separate configuration of SSD storage.

•
  Supports three distinct data streaming modes: timed streaming, fixed-length streaming, and manual streaming operations. It includes recording controls such as <Start>, <Pause>, <Resume>, and <Stop>, with data automatically saved after recording is stopped.
•
  Features live signal streaming functionality with concurrent streaming and storage functionality, offering configurable live measurement parameters to enable targeted data streaming based on signal characteristics. Additionally, it supports recorded data playback with adjustable playback progress control for detailed analysis of stored data characteristics.
•
  Both live streaming and playback modes maintain full signal analysis functionalities including time-domain waveform, spectrum (with persistence and averaging functions), and waterfall displays.
•
  Provides complete disk file management and on-disk data export functionality.

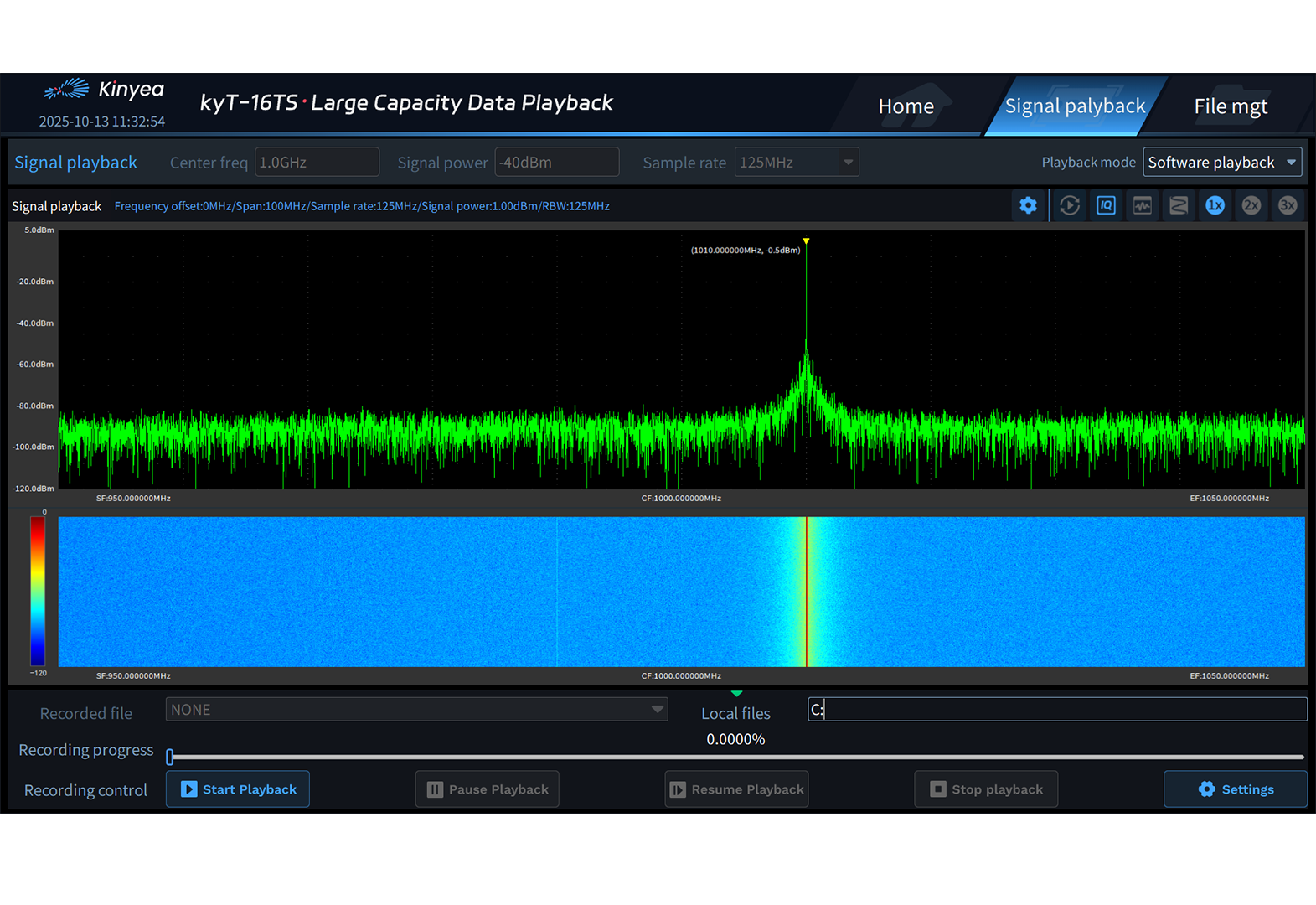

The kyT-xTS series includes four versions: kyT-MTS, kyT-8TS, kyT-16TS, and kyT-32TS. They are designed for the high-speed reading and continuous playback of high-capacity data from SSD solid-state storage for WST and WSG series products. The maximum continuous playback bandwidth of the kyT-xTS is 1 GHz, with a maximum continuous playback speed of over 5 GB/s.
kyT-MTS is suitable for WSG products within the MARSA Module series, enabling you to configure KSD series products  to meet your storage capacity requirements. As for kyT-8TS (8TB), kyT-16TS (16TB), and kyT-32TS (32TB) are suitable for WST and WSG products within the MARSA instrument series and do not require separate configuration of SSD storage.

•
  Supports the continuous playback of on-disk data with on-demand control of the playback progress, helping you to review the characteristics of the stored data.
•
  Supports display and analysis functions for the on-disk data, including Time Domain, Spectrum, and Waterfall views. The spectrum display also includes functions such as persistence and averaging.
•
  Supports disk file management and on-disk data export functions.
